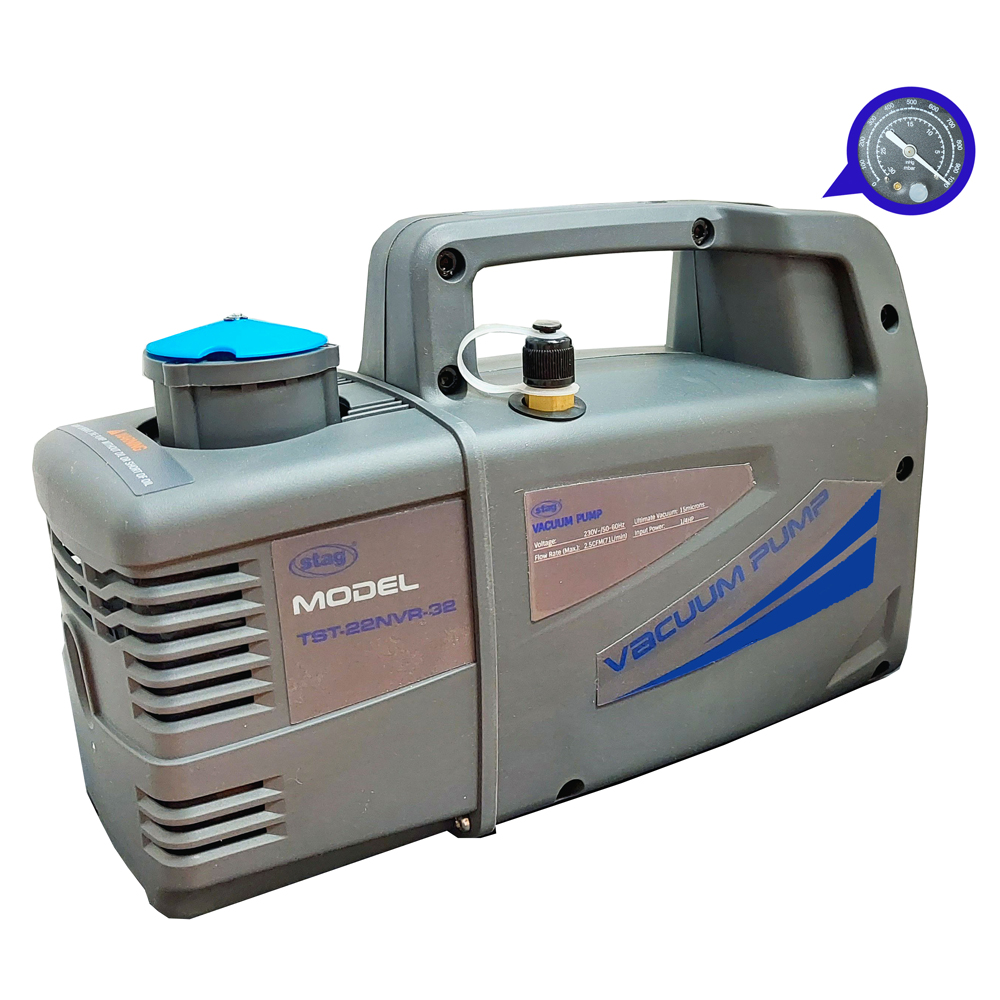

PMB-71R32 pompa bistadio portata 71 L/min, potenza 1/3 HP, connessioni 1/4″ SAE – ORBIS OB576059

Categoria: Pompe bistadio con vacuometro ed elettrovalvola

Descrizione

Pompe Bistadio con Vacuometro ed Elettrovalvola.

Pompe dotate di:

maniglia per il trasporto
interruttore ON/OFF
elettrovalvola a solenoide
vacuometro e indicatore livello olio.

Adatte per i gas refrigeranti compreso l’ R32.

CARATTERISTICHE TECNICHE

Alimentazione 230 V AC 50 Hz
Con vacuometro ed elettrovalvola
Fornite con un flacone di olio minerale
Portata 71 l/min
Potenza 1/3HP
Connessioni 1/4′ SAE
Dimensioni 310 x 123 x 200 mm

MARCHIO	ORBIS
BARCODE	8426709932299

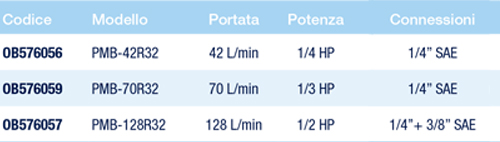

IMMAGINESECONDARIA	Mod_PMB
MODELLO	POMPA BISTADIO
PORTATA	71 l/min
PORTATA VOLUMETRICA NOMINALE	4.2
MAX. DIMENSIONE PARTI FISSE	310
ALTEZZA TOTALE	200
POTENZA DI USCITA DEL MOTORE (P2)	0.25
COLLEGAMENTO ELETTRICO	cavo
TENSIONE ALLACCIATA	1 x 230 V
CIRCUITO A POMPA	senza
DIAMETRO COLLEGAMENTO LATO PRESSIONE	altri
COLLEGAMENTO LATO PRESSIONE	filettatura esterna
MATERIALE DELL'INVOLUCRO DELLA POMPA	acciaio
GRADO DI PROTEZIONE (IP)	-
CLASSE DI ISOLAMENTO SECONDO IEC	-

Scheda tecnica
