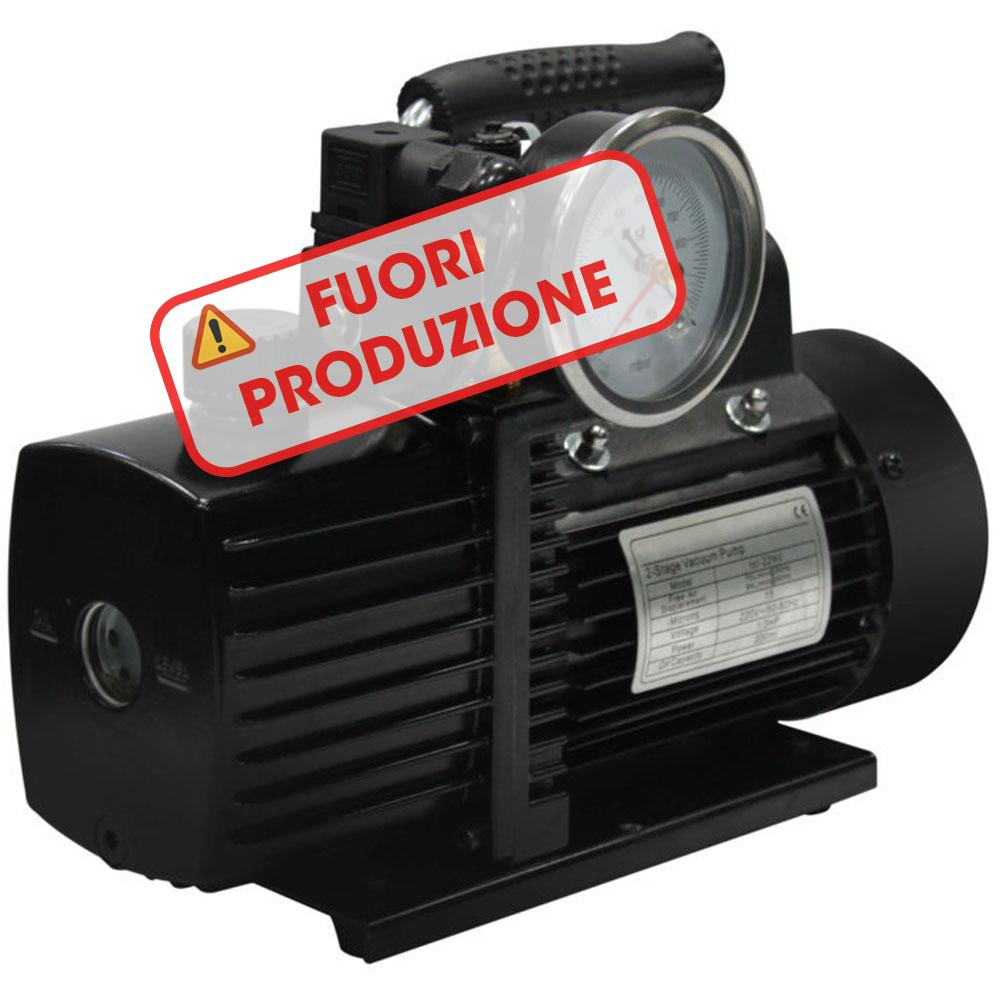

PMB-70 pompa bistadio portata 70 L/min, potenza 1/3 HP, connessioni 1/4″ SAE – ORBIS OB576026

Categoria: Fuori produzione

Descrizione
Scheda Tecnica

Descrizione

Pompe Bistadio con Vacuometro ed Elettrovalvola.

Pompe dotate di:

maniglia per il trasporto
interruttore ON/OFF
elettrovalvola a solenoide
vacuometro e indicatore livello olio.

CARATTERISTICHE TECNICHE

Alimentazione 230 V AC 50 Hz
Con vacuometro ed elettrovalvola
Fornite con un flacone di olio minerale
Portata 70l/min
Potenza 1/3HP
Connessioni 1/4′ SAE
Dimensioni 318 x 124 x 234 mm

MARCHIO	ORBIS
BARCODE	8426709919177
MODELLO	POMPA BISTADIO
PORTATA	70 l/min
POTENZA DI USCITA DEL MOTORE (P2)	0.25
ALTEZZA TOTALE	234
MAX. DIMENSIONE PARTI FISSE	318
PORTATA VOLUMETRICA NOMINALE	4.2
COLLEGAMENTO ELETTRICO	cavo
TENSIONE ALLACCIATA	1 x 230 V
CIRCUITO A POMPA	senza
DIAMETRO COLLEGAMENTO LATO PRESSIONE	altri
COLLEGAMENTO LATO PRESSIONE	filettatura esterna
MATERIALE DELL'INVOLUCRO DELLA POMPA	acciaio
CLASSE DI ISOLAMENTO SECONDO IEC	-
GRADO DI PROTEZIONE (IP)	-
