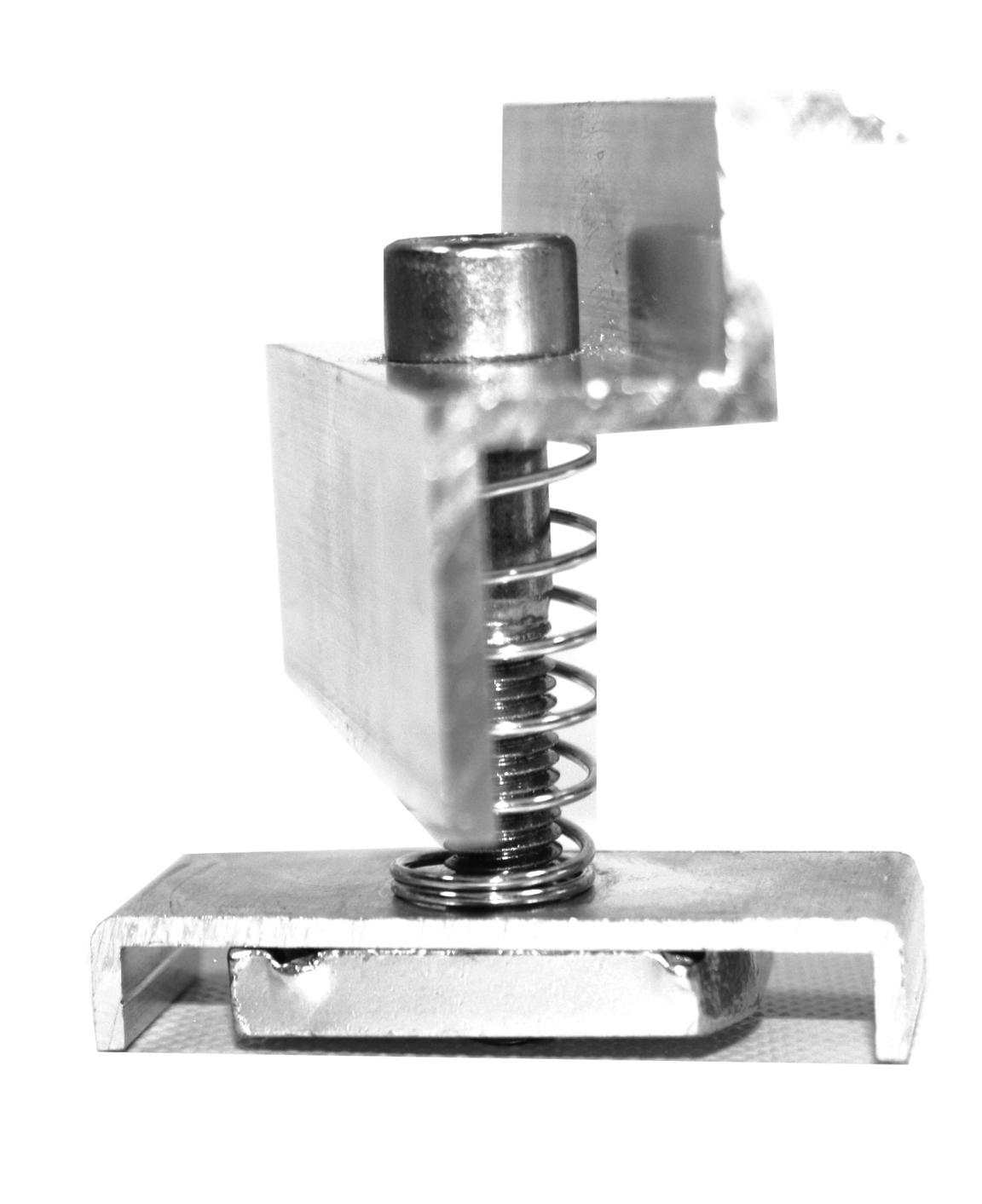

MPT-P34 Morsetto TERMINALE PREASSEMBLATO fissaggio moduli, colore ALLUMINIO, spessori moduli ammessi 33mm-34mm (5 PEZZI) – ORBIS OB620104

Categoria: Morsetti fissaggio pannelli fotovoltaici

Descrizione

MPT-P sono morsetti in alluminio naturale utilizzati per fissare i moduli fotovoltaici su profilati di sostegno. MPT-P è un morsetto preassemblato per il fissaggio terminale del modulo, disponibile in diversi modelli in funzione dello spessore del modulo.

CARATTERISTICHE TECNICHE

Materiale Morsetto: lega di alluminio EN AW-6060 T5
Vite: Inox TCE M8, AISI 304
Molla: Ferro Zincato (ciclo di lavorazione Fe/Zn 7 II)
Dado: DDF Acciaio AISI 304L
Altezze Moduli consentite: da 33 mm a 34 mm
Larghezza morsetto: 60 mm
Colore: Alluminio naturale

MARCHIO	ORBIS
BARCODE	8426709924294
MODELLO	PREASSEMBLATI
MONTAGGIO	terminale
COLORAZIONE	alluminio naturale
IMMAGINESECONDARIA	Mod_MPT_P
IMMAGINICARATTERISTICHE	Dim_MPT
LARGHEZZA	60
ALTEZZA	36.7
PROFONDITà	30
CON MATERIALE DI FISSAGGIO	Sì
PER ALTEZZA TELAIO	34
MATERIALE	alluminio
TIPOLOGIA	morsetto terminale
TRATTAMENTO SUPERFICIE	-
