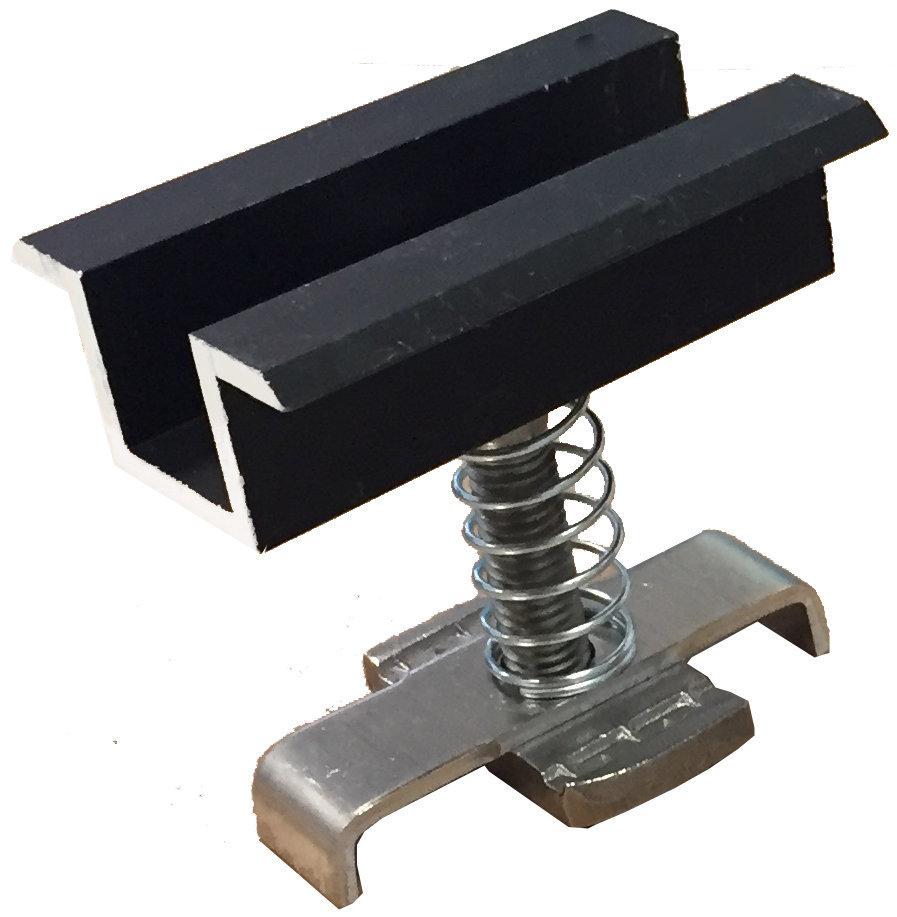

MPC-P30RNE Morsetto CENTRALE PREASSEMBLATO fissaggio moduli, colore NERO, spessore modulo ammesso 30mm (5 PEZZI) – ORBIS OB621303

Categoria: Morsetti fissaggio pannelli fotovoltaici

Descrizione

MPC-P sono morsetti in alluminio naturale utilizzati per fissare i moduli fotovoltaici su profilati di sostegno. MPC-P è un morsetto preassemblato per il fissaggio centrale del modulo, disponibile in diversi modelli in funzione dello spessore del modulo.

CARATTERISTICHE TECNICHE

Materiale Morsetto: lega di alluminio EN AW-6060 T5
Vite: Inox TCE M8, AISI 304
Molla: Ferro Zincato (ciclo di lavorazione Fe/Zn 7 II)
Dado: DDF Acciaio AISI 304L
Altezze Moduli consentite: da 30 mm
Larghezza morsetto: 60 mm
Colore: Alluminio anodizzato NERO

MARCHIO	ORBIS
BARCODE	8426709934583
MODELLO	PREASSEMBLATI
MONTAGGIO	centrale
COLORAZIONE	anodizzato nero
IMMAGINESECONDARIA	Mod_MPC_P_NE
IMMAGINICARATTERISTICHE	Dim_MPC
LARGHEZZA	60
ALTEZZA	18.7
PROFONDITà	39.6
CON MATERIALE DI FISSAGGIO	Sì
PER ALTEZZA TELAIO	30 - 0
TRATTAMENTO SUPERFICIE	anodizzato
MATERIALE	alluminio
TIPOLOGIA	morsetto centrale
