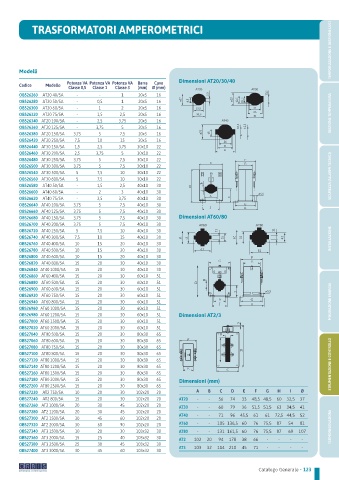

Page 125 - Catalgogo GENERALE 2026

TEMPORIZZAZIONE E GESTIONE LUCI
TRASFORMATORI AMPEROMETRICI

Modelli
Dimensioni AT20/30/40
Potenza VA Potenza VA Potenza VA Barra Cavo
Codice Modello
Classe 0,5 Classe 1 Classe 3 (mm) Ø (mm)

OB526260 AT20 40/5A - - 1 20x5 16
OB526280 AT20 50/5A - 0,5 1 20x5 16
OB526300 AT20 60/5A - 1 2 20x5 16
OB526320 AT20 75/5A - 1,5 2,5 20x5 16 GESTIONE TEMPERATURA
OB526340 AT20 100/5A - 2,5 3,75 20x5 16
OB526360 AT20 125/5A - 3,75 5 20x5 16
OB526380 AT20 150/5A 3,75 5 7,5 20x5 16
OB526420 AT20 250/5A 7,5 10 15 20x5 16
OB526440 AT30 150/5A 1,5 2,5 3,75 30x10 22
OB526460 AT30 200/5A 2,5 3,75 5 30x10 22
OB526480 AT30 250/5A 3,75 5 7,5 30x10 22
OB526500 AT30 300/5A 3,75 5 7,5 30x10 22
OB526540 AT30 500/5A 5 7,5 10 30x10 22
OB526560 AT30 600/5A 5 7,5 10 30x10 22 SICUREZZA (ALLARMI TECNICI)
OB526580 AT40 50/5A - 1,5 2,5 40x10 30
OB526600 AT40 60/5A - 2 3 40x10 30
OB526620 AT40 75/5A - 2,5 3,75 40x10 30
OB526640 AT40 100/5A 3,75 5 7,5 40x10 30
OB526660 AT40 125/5A 3,75 5 7,5 40x10 30
OB526680 AT40 150/5A 3,75 5 7,5 40x10 30 Dimensioni AT60/80
OB526700 AT40 200/5A 3,75 5 7,5 40x10 30
OB526720 AT40 250/5A 5 7,5 10 40x10 30
OB526740 AT40 300/5A 7,5 10 15 40x10 30 INSTALLAZIONE
OB526760 AT40 400/5A 10 15 20 40x10 30
OB526780 AT40 500/5A 10 15 20 40x10 30
OB526800 AT40 600/5A 10 15 20 40x10 30
OB526820 AT40 800/5A 15 20 30 40x10 30
OB526840 AT40 1000/5A 15 20 30 40x10 30
OB526860 AT60 400/5A 15 20 30 60x10 51
OB526880 AT60 500/5A 15 20 30 60x10 51
OB526900 AT60 600/5A 15 20 30 60x10 51
OB526920 AT60 750/5A 15 20 30 60x10 51
OB526940 AT60 800/5A 15 20 30 60x10 51 MISURAZIONE ENERGIA
OB526960 AT60 1000/5A 15 20 30 60x10 51
OB526980 AT60 1200/5A 15 20 30 60x10 51 Dimensioni AT2/3
OB527000 AT60 1500/5A 15 20 30 60x10 51
OB527020 AT60 2000/5A 15 20 30 60x10 51 oni AT2/3
OB527040 AT80 500/5A 15 20 30 80x30 65
OB527060 AT80 600/5A 15 20 30 80x30 65
OB527080 AT80 750/5A 15 20 30 80x30 65
OB527100 AT80 800/5A 15 20 30 80x30 65
OB527120 AT80 1000/5A 15 20 30 80x30 65
OB527140 AT80 1200/5A 15 20 30 80x30 65 STRUMENTAZIONE E CONTROLLO
OB527160 AT80 1500/5A 15 20 30 80x30 65
OB527180 AT80 2000/5A 15 20 30 80x30 65 Dimensioni (mm)
OB527200 AT80 2500/5A 15 20 30 80x30 65
OB527220 AT2 750/5A 10 20 30 102x20 20 A B C D E F G H I Ø
OB527240 AT2 800/5A 15 20 30 102x20 20 AT20 - - 56 74 33 48,5 48,5 60 32,5 37
OB527260 AT2 1000/5A 20 30 45 102x20 20 AT30 - - 60 79 36 51,5 51,5 63 34,5 41
OB527280 AT2 1200/5A 20 30 45 102x20 20
AT40 - - 71 96 45,5 61 61 72,5 44,5 52
OB527300 AT2 1500/5A 30 45 60 102x20 20
OB527320 AT2 2000/5A 30 60 90 102x20 20 AT60 - - 105 136,5 60 76 75,5 87 54 81 TERMOREGOLAZIONE
OB527340 AT3 1500/5A 10 20 30 103x32 30 AT80 - - 131 161,5 60 76 75,5 87 69 107
OB527360 AT3 2000/5A 15 25 40 103x32 30
AT2 102 20 94 178 38 66 - - - -
OB527380 AT3 2500/5A 25 30 45 103x32 30
AT3 103 32 114 210 45 71 - - - -
OB527400 AT3 3000/5A 30 45 60 103x32 30
